NCID-ZINC01579081

MMsINC code: MMs02236943

Type: Neutral
Formula: C22H24N8O5

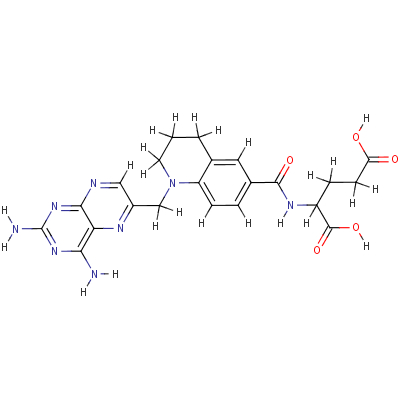

SMILES:   OC(=O)C(NC(=O)c1cc2CCCN(c2cc1)Cc1nc2c(nc(nc2N)N)nc1)CCC(O)=O
InChI:   InChI=1/C22H24N8O5/c23-18-17-19(29-22(24)28-18)25-9-13(26-17)10-30-7-1-2-11-8-12(3-5-15(11)30)20(33)27-14(21(34)35)4-6-16(31)32/h3,5,8-9,14H,1-2,4,6-7,10H2,(H,27,33)(H,31,32)(H,34,35)(H4,23,24,25,28,29)/t14-/m0/s1

Download   format file
Drug Similarity  |  Similarity to PDB ligands

This browser does not support Java Applets.
Get the latest Java Plug-in here.
download 2D Mol File



download 3D Mol File

Potential Energy
Epot(MMFF94)=131.991 kcal/mol

MOE's Descriptors


 Physical Properties
  Molecular Weight: 480.485 g/mol  logS: -3.63413  SlogP: 0.85117  Reactive groups: 0

 Topological Properties
  Globularity: 0.0483546  Sterimol/B1: 3.60267  Sterimol/B2: 4.40675  Sterimol/B3: 5.52506
  Sterimol/B4: 6.53811  Sterimol/L: 21.1391

 Surface and Volume Properties
  Accessible surface: 757.473  Positive charged surface: 509.859  Negative charged surface: 247.614  Volume: 420.375
  Hydrophobic surface: 304.515  Hydrophilic surface: 452.958

 Pharmacophoric Properties
  Hydrogen bond donors: 7  Hydrogen bond acceptors: 9  Acid groups: 0  Basic groups: 0
  Chiral centers: 1

 Drug- and Lead-like Properties
  Lipinski's drug-like rule: 1  Violations of Lipinski's rule: 1  Oprea's lead like rule: 0

  search links for this molecule:


Ions/Tautomers related molecules


MMs02236944
NCID-ZINC01579081
